Categories of Lead-Acid Battery Chargers being shown in this Showroom:

Charger models in FR case (plastic) with, by model selection, either "Float-Charge" or "3-Step-Charge" algorithm, with universal input, with IEC 320 input connector , with 2-conductor power output cable with "stripped ends", and with optional temperature compensation of final voltage for the battery ambient temperature.
Size:  6.81" long x 3.37" wide x 2.03" high.  Weight:  1.20 lbs.(approx.)                                                     Back to top, "Category" selections

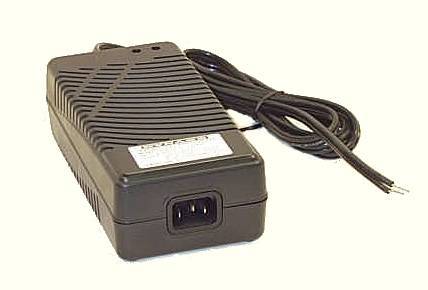

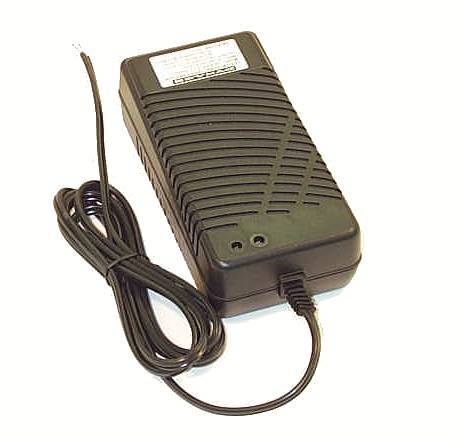

S4DB1FR &  S4DB2FR Series (showing input end)		S4DB1FR &  S4DB2FR Series (showing output end)

Charger models in PD case (open-frame) with, by model selection, either "Float-Charge" or "3-Step-Charge" algorithm, with universal input,  with 0.11" Fastons for input and output connections on charger unit, and with 0.11" Fastons for connecting wires needed to connect to a diode for optional temperature compensation of final voltage for the battery ambient temperature.
Size:  6.20" long x 2.96" wide x 1.94" high.  Weight:   1.0 lbs. (approx.)                                                        Back to top, "Category" selections

S4NB1PD &  S4NB2PD Series (showing input end)		S4NB1PD &  S4NB2PD Series (showing output end)

Charger models in GY case (plastic) with, by model selection, either "Float-Charge" or "3-Step-Charge" algorithm, with universal input, and with IEC 320 input connector , with 2-conductor power output cable with connector on end to connect to a separate mating cable (purchased separately) which has "stripped ends" to connect (by customer) to applicable terminations for the respective (+) and (-) battery posts, and with 2-conductor cable with connector on end to connect to a separate mating cable (purchased separately) which, on its end, has a isolated diode to be used as "battery ambient" temperature sensor.
Size:  7.03" long x 3.75" wide x 2.28" high.  Weight:  1.75 lbs. (approx.)                                                           Back to top, "Category" selections

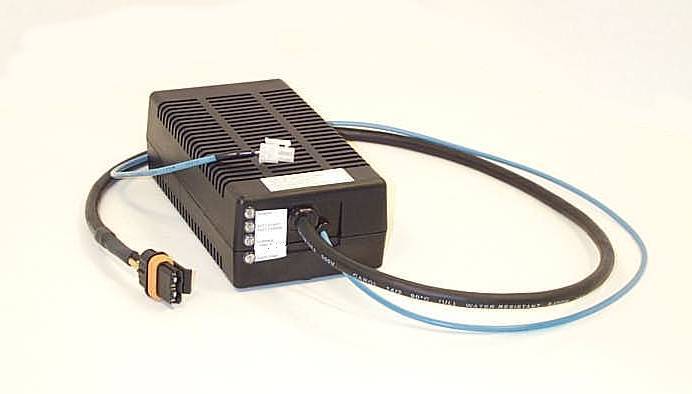

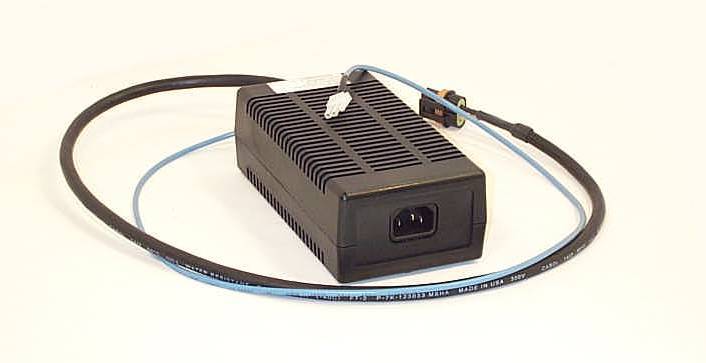

S4DB1.1GY &  S4DB2.1GY Series (showing input end)		S4DB1.1GY &  S4DB2.1GY Series (showing output end)

Charger models in PE case (open-frame) with, by model selection, either "Float-Charge" or "3-Step-Charge" algorithm, with universal input,  with 0.25" Fastons for input and output connections on charger unit, and with 0.14" Fastons for connecting wires which, on their end, has a isolated diode to be used as "battery ambient" temperature sensor.
Size:  6.50" long x 3.30" wide x 1.94" high.  Weight:   1.5 lbs. (approx.)                                                        Back to top, "Category" selections

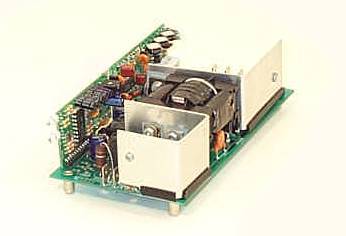

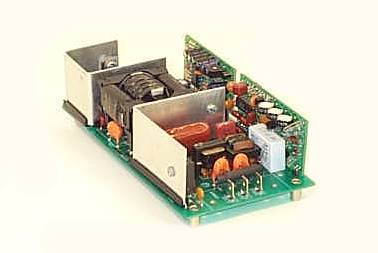

S4NB1.1PE &  S4NB2.1PE Series (showing input end)		S4NB1.1PE &  S4NB2.1PE Series (showing output end)

Charger models in TA case (metal, with desktop feet), with internal fan,  with, by model selection, either "Float-Charge" or "3-Step-Charge" algorithm, with universal input, and with IEC 320 input connector , with 2-conductor power output cable with connector on end to connect to a separate mating cable (purchased separately) which has "stripped ends" to connect (by customer) to applicable terminations for the respective (+) and (-) battery posts, and with 2-conductor cable with connector on end to connect to a separate mating cable (purchased separately) which, on its end, has a isolated diode to be used as "battery ambient" temperature sensor.
Size:  7.87" long x 3.94" wide x 3.15" high.  Weight:  3.25 lbs. (approx.)                                                         Back to top, "Category" selections

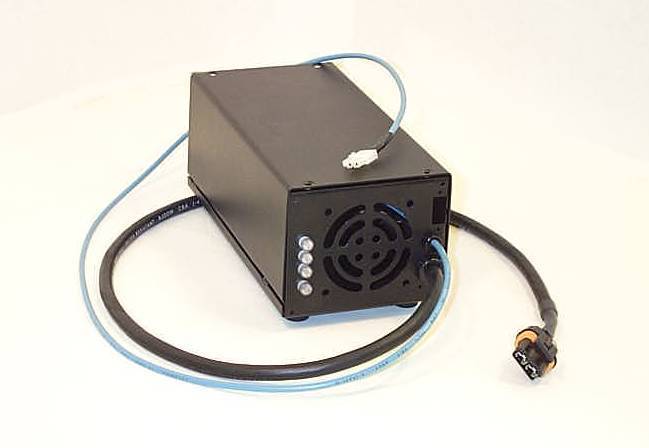

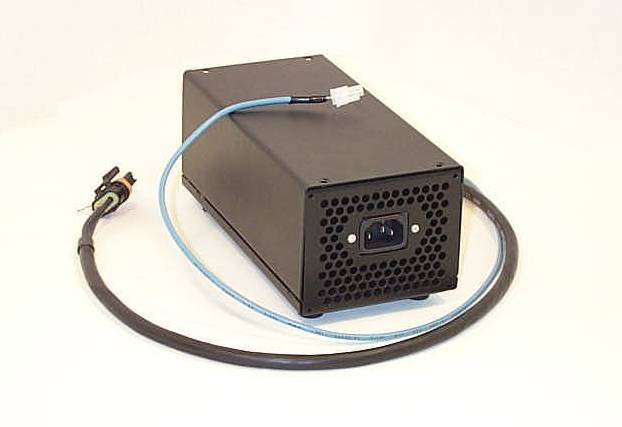

S4DB1.1TA &  S4DB2.1TA Series (showing input end)		S4DB1.1TA &  S4DB2.1TA Series (showing output end)

Charger models in TA metal case (for panel or bracket mounting), with internal fan,  with, by model selection, either "Float-Charge" or "3-Step-Charge" algorithm, with universal input, and with IEC 320 input connector , with 2-conductor power output cable with connector on end to connect to a separate mating cable (purchased separately) which has "stripped ends" to connect (by customer) to applicable terminations for the respective (+) and (-) battery posts, and with 2-conductor cable with connector on end to connect to a separate mating cable (purchased separately)  which, on its end, has a isolated diode to be used as "battery ambient" temperature sensor.
Size:  7.87" long x 3.94" wide x 3.15" high.  Weight:  3.25 lbs. (approx.)                                                      Back to top, "Category" selections

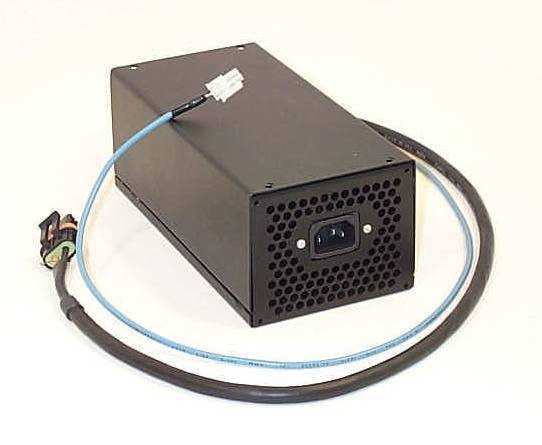

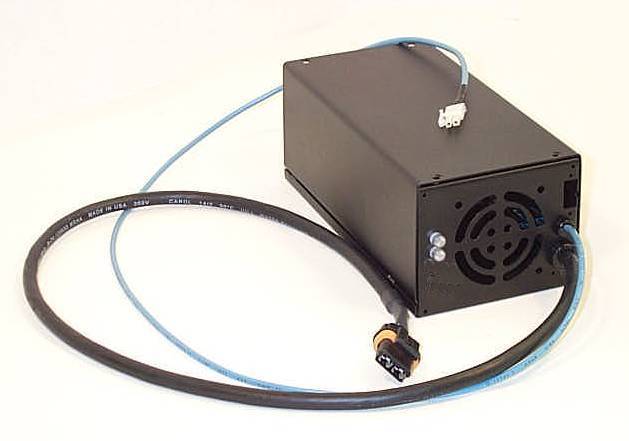

S4EB1.1TA &  S4EB2.1TA Series (showing input end)		S4EB1.1TA &  S4EB2.1TA Series (showing output end)

Charger models in rain-resistant, VR metal case (for panel or bracket mounting), with internal fan,  with 3-Step-Charge algorithm, with universal input, with IEC 320 input connector , with output connector to connect to a separate mating cable (purchased separately) which has "ends" to connect (by customer) to applicable terminations for the respective (+) and (-) battery posts, and with 2-conductor cable with a isolated diode to be used as "battery ambient" temperature sensor.
Size:  13.00" long x 5.75" wide x 3.75" high.  Weight:   6.9 lbs. (approx.)                                                          Back to top, "Category" selections

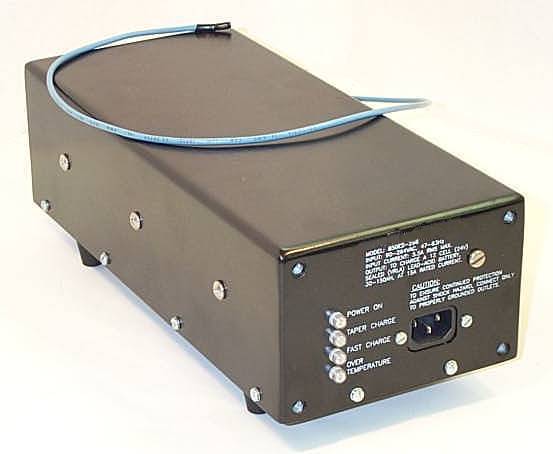

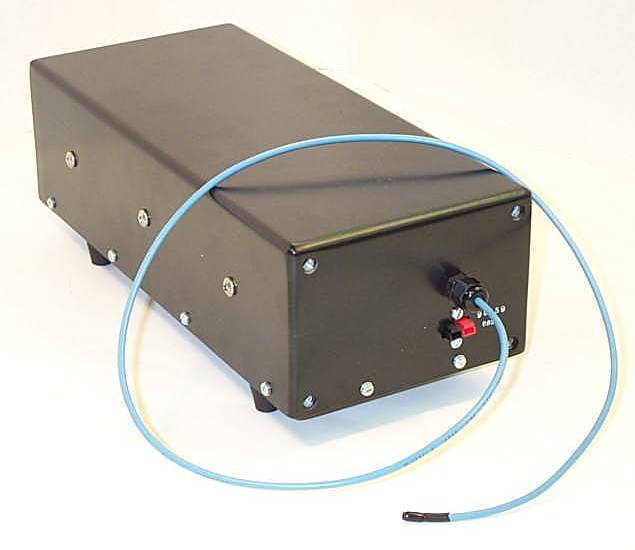

Model 850DBS-298 (showing input end)		Model 850DBS-298  (showing output end)

Charger models in rain-resistant, VR metal case (for panel or bracket mounting), with internal fan,  with, by model selection, either "Float-Charge" or "3-Step-Charge" algorithm, with universal input, and with IEC 320 input connector , with 2-conductor power output cable with connector on end to connect to a separate mating cable (purchased separately) which has "stripped ends" to connect (by customer) to applicable terminations for the respective (+) and (-) battery posts, and with 2-conductor cable with connector on end to connect to a separate mating cable (purchased separately)  which, on its end, has a isolated diode to be used as "battery ambient" temperature sensor.
Size:  13.00" long x 5.75" wide x 3.75" high.  Weight:   6.9 lbs. (approx.)                                                       Back to top, "Category" selections

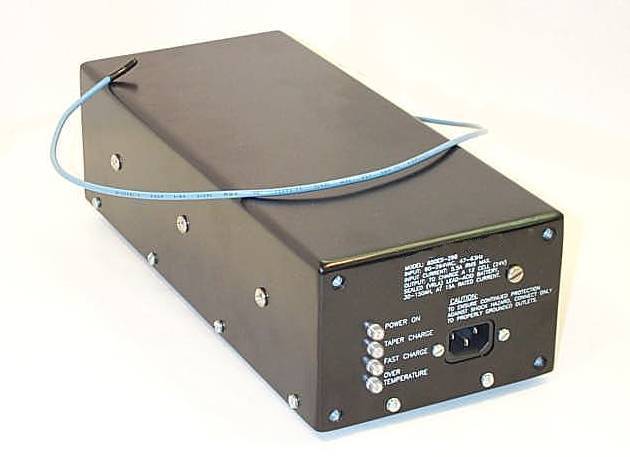

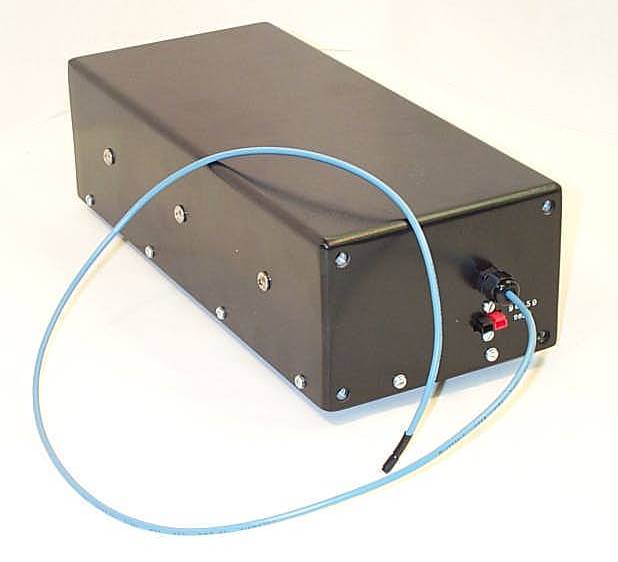

Model 850EBS-298 (showing input end)		Model 850EBS-298  (showing output end)

Charger models in rain-resistant, VR metal case, desktop, with internal fan on bottom,  with 3-Step-Charge algorithm, with 120 vac input, with 6 ft input cord with 3 prong North American plug, with 2-point barrier block to connect to a separate cable (customer furnished) which has "ends" to connect (by customer) to applicable terminations for the respective (+) and (-) battery posts, and with 2-conductor cable with a isolated diode to be used as "battery ambient" temperature sensor.
Size:  13.00" long x 5.75" wide x 4.25" high.  Weight:  7.5 lbs. (approx.)                                                           Back to top, "Category" selections


Model 850DBS-341 (showing input end) (feet not shown)	Model 850DBS-341 (showing bottom) (feet not shown)	Model 850DBS-341  (showing output end) (feet not shown)

Charger models in rain-resistant, VR metal case (for panel or bracket mounting), with internal fan,  with, by model selection, either "Float-Charge" or "3-Step-Charge" algorithm, with 120 vac input, with 6 ft input cord with 3 prong North American plug, with 2-point barrier block to connect to a separate cable (customer furnished) which has "ends" to connect (by customer) to applicable terminations for the respective (+) and (-) battery posts, and with 2-conductor cable with connector on end to connect to a separate mating cable (purchased separately)  which, on its end, has a isolated diode to be used as "battery ambient" temperature sensor.
Size:  13.00" long x 5.75" wide x 4.25" high.  Weight:   7.5 lbs. (approx.)                                                           Back to top, "Category" selections

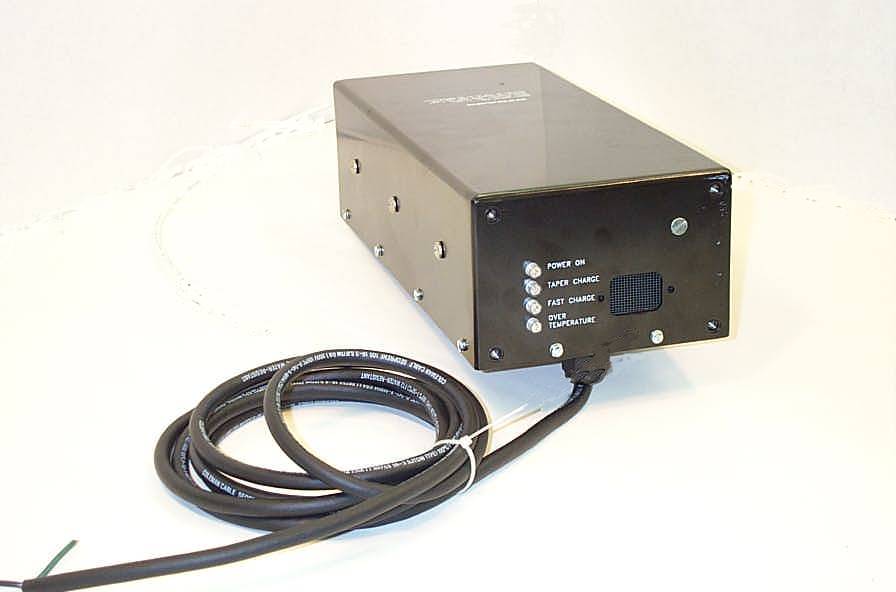

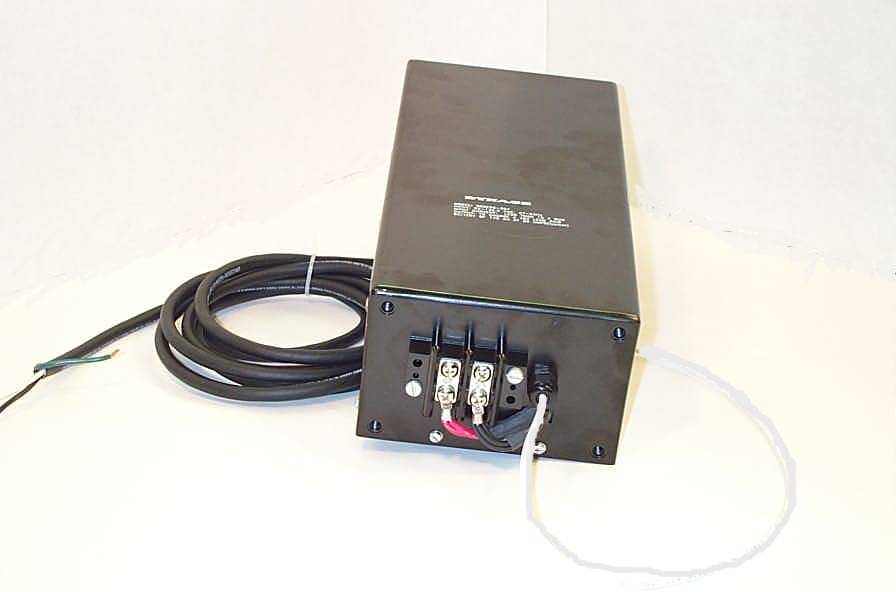

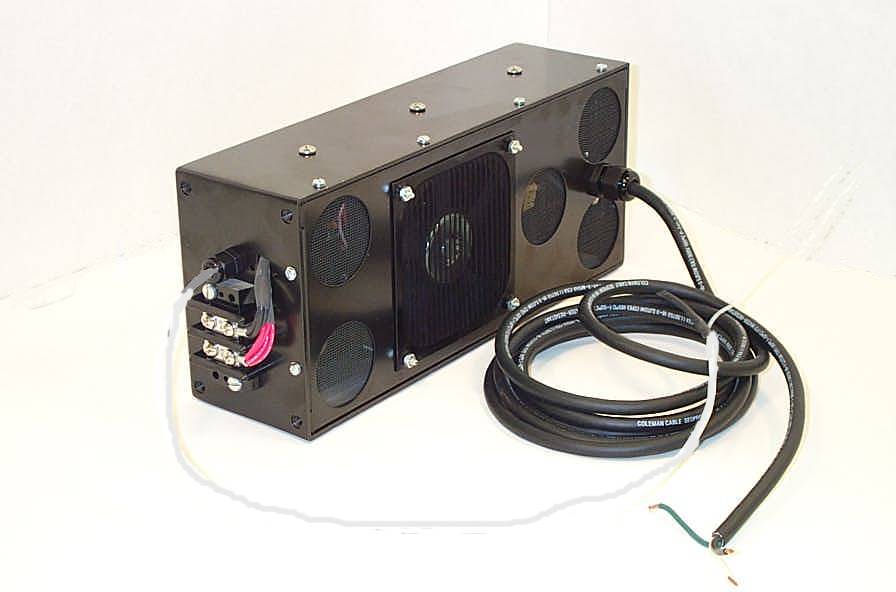

Model 850EBS-341 (showing input end)	Model 850EBS-341 (showing bottom)	Model 850EBS-341  (showing output end)
